Description
P1531-DIP LED Strip Mesh Screen

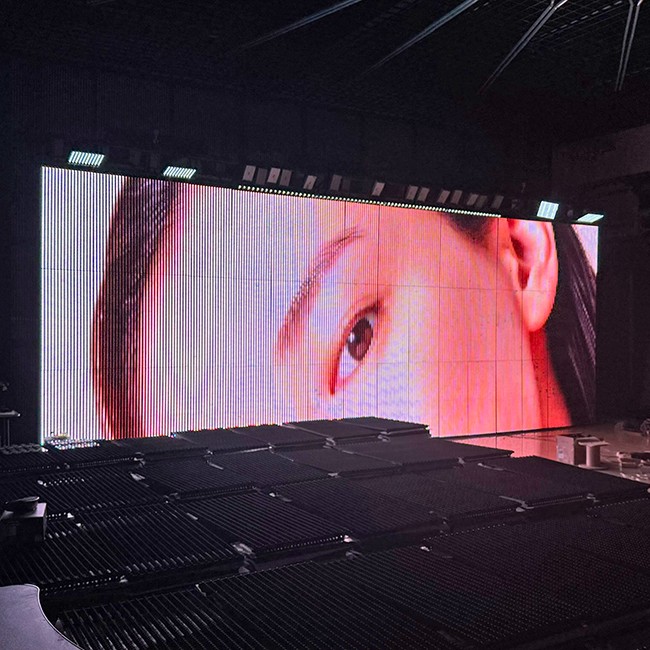

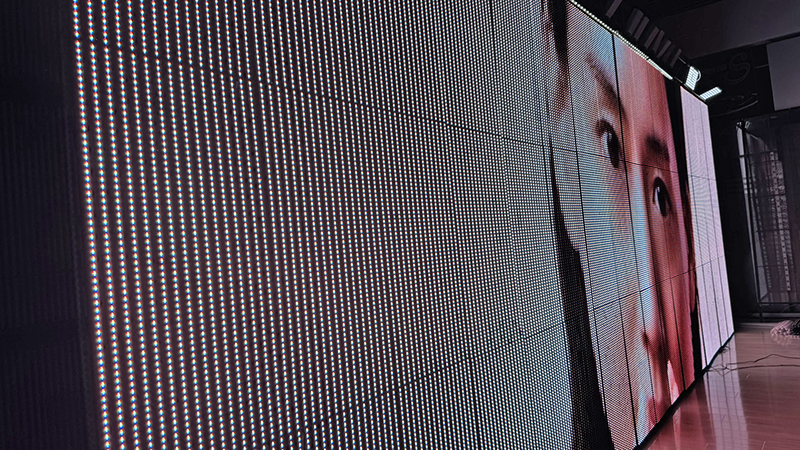

Transform Your Building's Media Facade with the P1531 Outdoor LED Mesh Panel! Elevate your visual experiences with the P1531 Outdoor LED Mesh Panel, specifically designed for stunning building Media Facades.
Featuring:
✅ 8000 nits ultra-high brightness for vibrant visuals, even in direct sunlight.
✅ Premium Epistar LED Chips ensuring durability and exceptional performance.
✅ Incredible 16-bit color resolution for smooth and dynamic visuals.

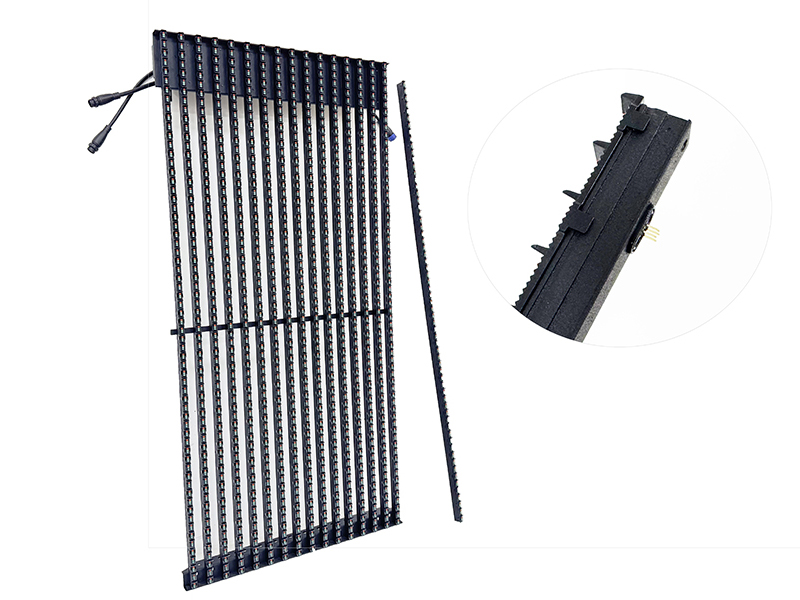

This state-of-the-art mesh panel offers effortless setup and maintenance with innovative LED light strips and connector pins for seamless power and data transmission.
| DIP LED Mesh Panel | ||
|---|---|---|
| Model | P15.625D | P1531D |
| Pixel Pitch | H: 15.625, V:15.625 | H: 31.25, V: 15.625 |
| Pixel Composition | 346 (1R1G1B) | |
| Resolution Per sqm | 4096 | 2048 |
| Unit Enclosure Size | 500(W) x 1000(H) | |
| Weight per sqm | 20 kg | 15.6 kg |
| Unit Thickness | 6.7 cm | |
| Installation Thickness | 12.7 cm | |
| Peak Power Consumption | 550 w | 450 w |
| Average Power Consumption | 275 w | 190 w |
| Screen Brightness | ≥1000cd | ≥8000cd |
| Gray Level | 16 bit | |
| Color Temperature | 6500-9300K | |
| Brightness Adjustment | 0-255 levels | |
| Viewing Angle | Horizontal 110° Vertical 70° | |
| Optimal Viewing Distance | 15-300 Meter | |
| Refresh Rate | 3840 Hz | |
| Control Method | Synchronous or Asynchronous | |
| Driving Method | Constant Current Static | |
| Power Supply Voltage | 85-250 | |
| Design Life | ≥100,000 hours | |
| Cooling Method | Reinforced Natural Convection | |
| LED Strip Width | 9.8 mm | |
| Lamp Strip Material | 6061 Aluminum Alloy | |
| Transparency Ratio | 40% | 70% |
| Ingress Protection | IP67 | |
| Operating Temperature | -35 ~ +80°C | |
| Storage Temperature | -55 ~ +121°C | |
| Frame Material | Aluminum Alloy(Power Coating) | |
| Fire Resistance | V0 Class Flame Retardant | |
Control by Novastar
The LED mesh control system is compatible with Novastar products used worldwide. Supporting USB, HDMI, wireless distribution (smartphone, PC) distribution and management.
800/1200 Watt PSU+32/64 Universe Sub-controller(Prebuild Novastar Receiving Card)
Technical Specification
